CONVEY SYSTEMS

Hard-To-Handle Material Transport Solutions

ENTEK Manufacturing offers a wide range of conveying systems with a primary focus on pneumatically conveying hard-to-handle powders and other materials.

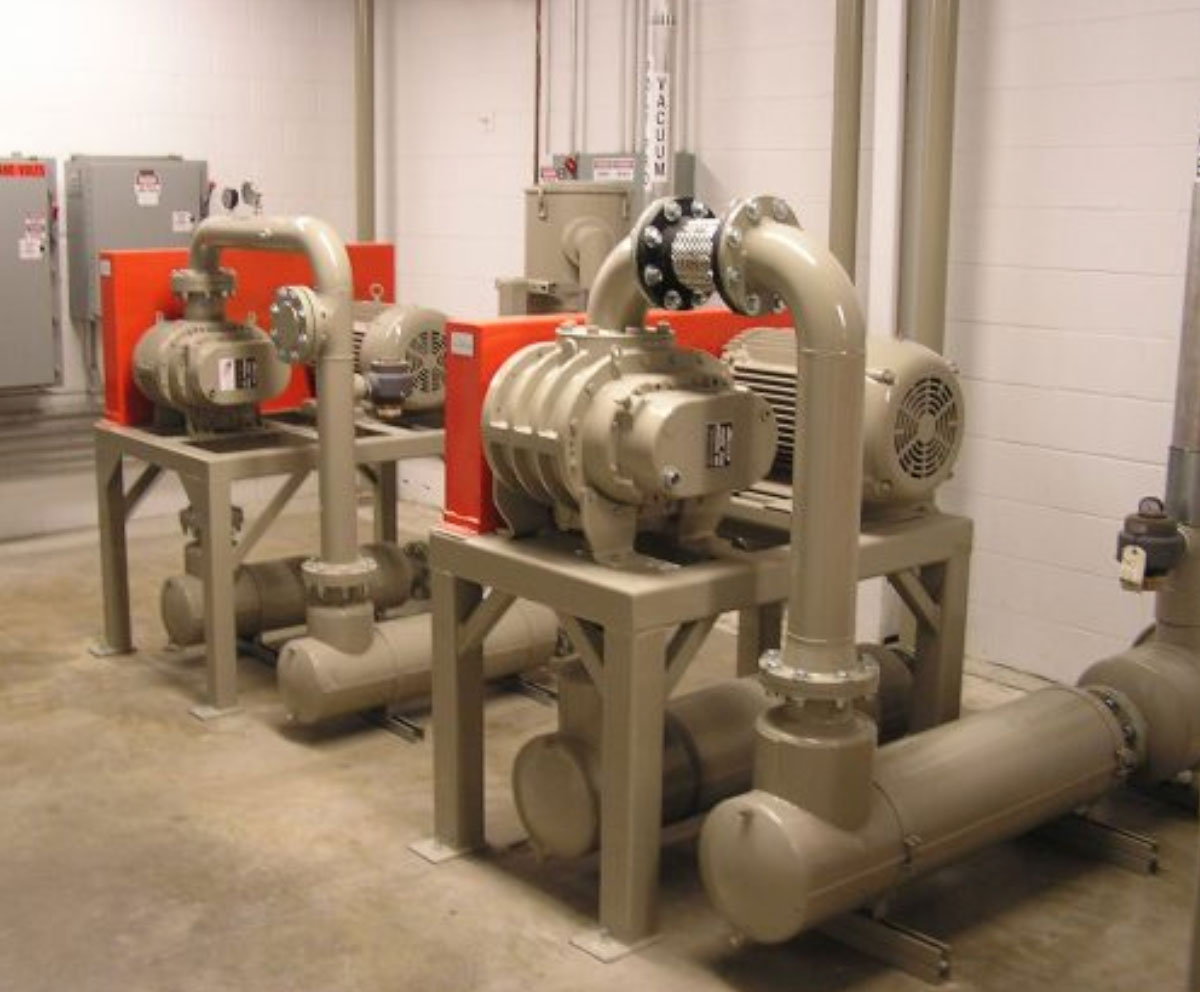

Pressure Systems

  • 2″ to 8″ systems
  • 5 to 250 HP systems
  • 1,000 to 150,000 PPH (0.5 to 75 TPH)
  • Longer distances (>300′ / 100m)
  • Each unit individually designed
  • Custom configurations to fit requirements

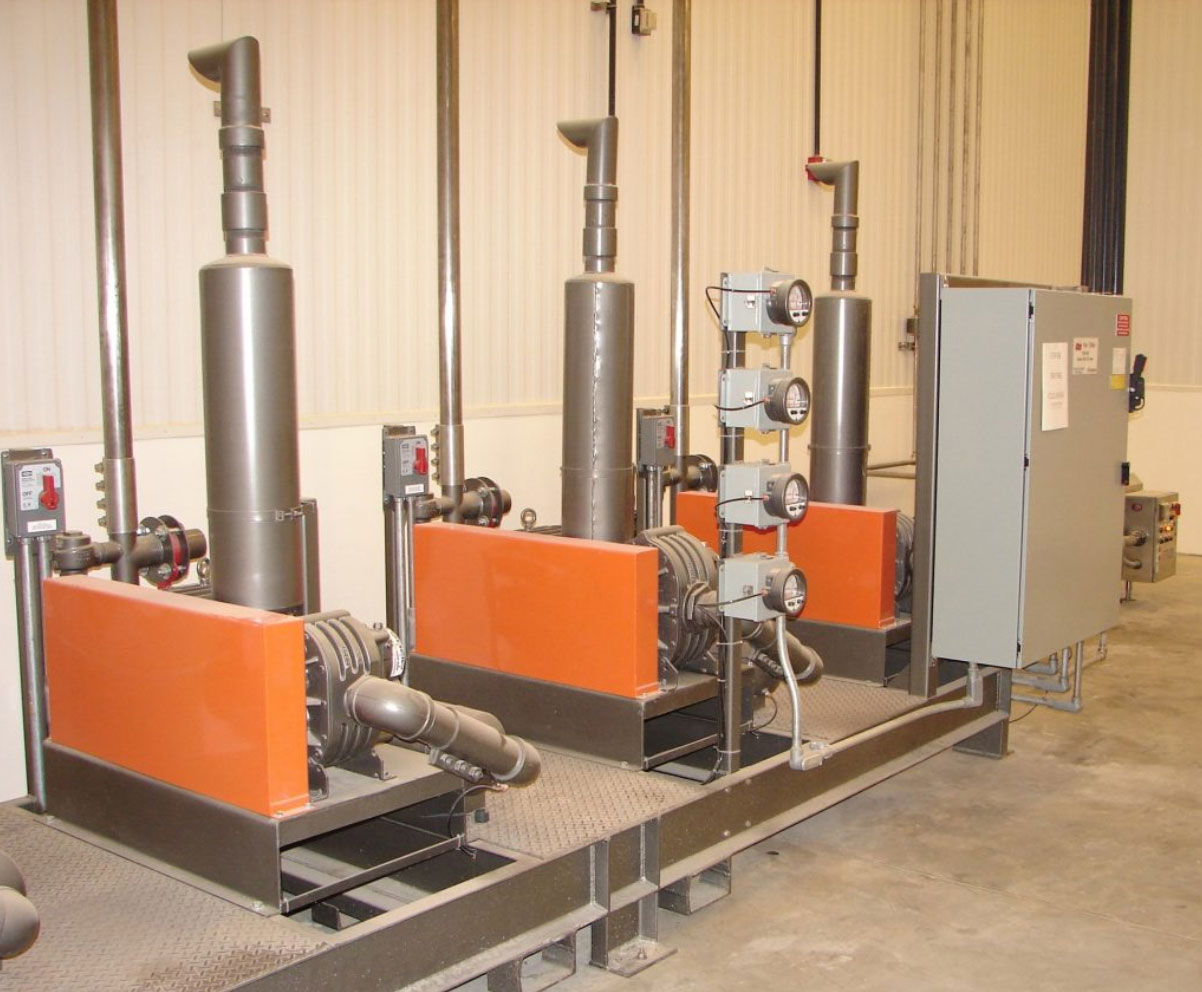

Vacuum Systems

  • 2″ to 8″ systems
  • 5 to 150 HP systems
  • 500 to 8,000 PPH (0.2 to 40TPH)
  • Cleaner system, less material leakage
  • Each unit individually designed
  • Custom configurations to fit requirements

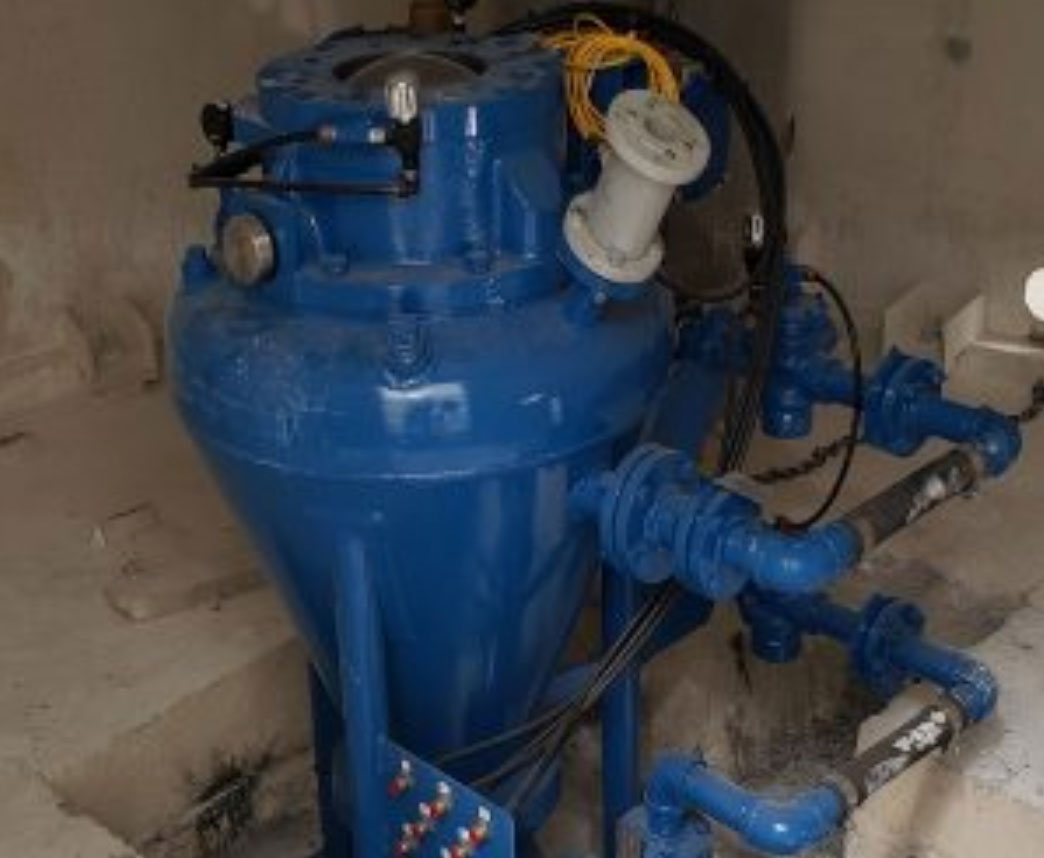

Dense Phase Systems

  • 2″ to 10″ systems
  • 1,000 to 200,000 PPH (0.5 to 100 TPH)
  • Runs off compressed air
  • Extremely long distances (>500′ / 160m)
  • Less material degradation
  • Less pipeline wear

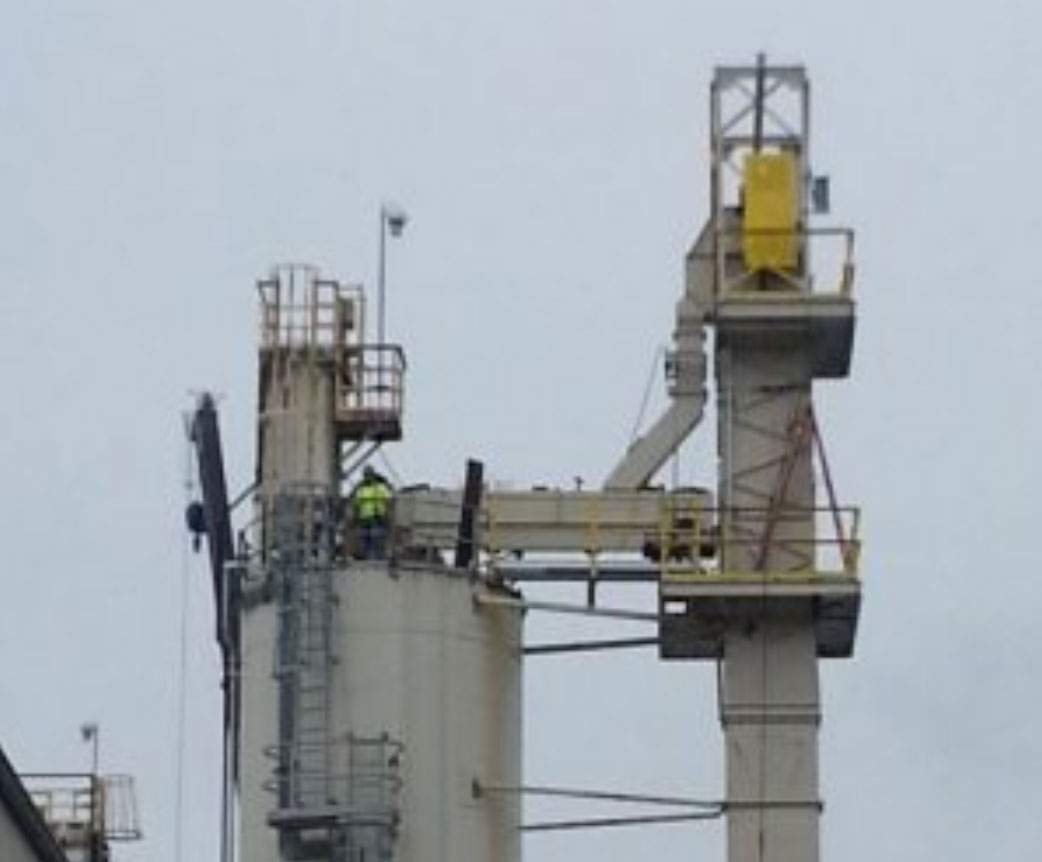

Mechanical Conveyors

  • 2,000 to 700,000 PPH (1 to 350 TPH)
  • Short distances
  • Less dust collection required
  • Screws / Augers
  • Bucket Elevators
  • Belt Conveyors

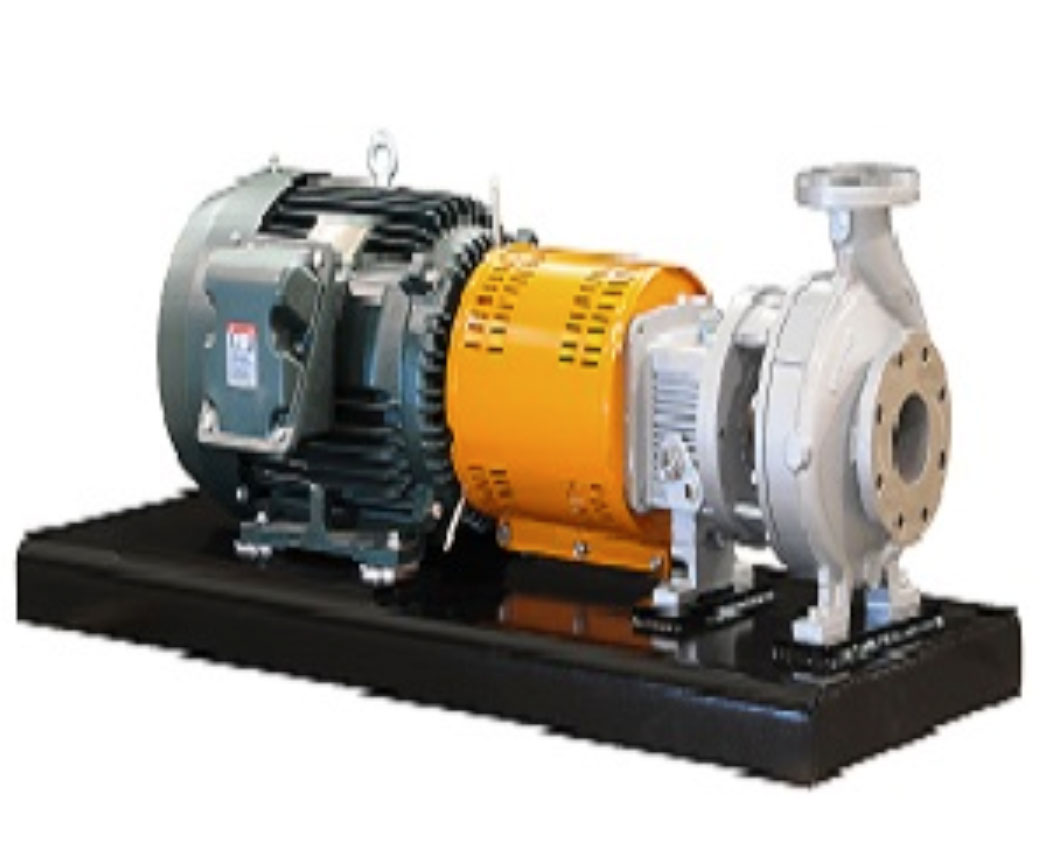

Liquid Systems

  • 1/2″ to 5″ systems
  • 10 to 25,000 GPM
  • Allows a complete system for customer
  • Food grade systems available
  • Heat trace
  • Insulated systems
