Twin-Screw Extruders

Extrusion Solutions

ENTEK co-rotating twin-screw extruders are designed for maximum reliability, ease-of-use and flexibility. We offer three twin-screw extruder product lines for all types of material compounding applications.

ENTEK Logo

HT

High Torque

ENTEK is proud to introduce the first extruder in our new series: our HT72. With its torque density of 18 and Do/Di ratio of 1.61, ENTEK’s HT72 features the highest free volume at 18 torque density in the industry. In addition to its robust construction, this line is coupled with a larger motor size to be a true work horse for continuous 24/7/365 production.

ENTEK Extruder Twin Screw 27mm

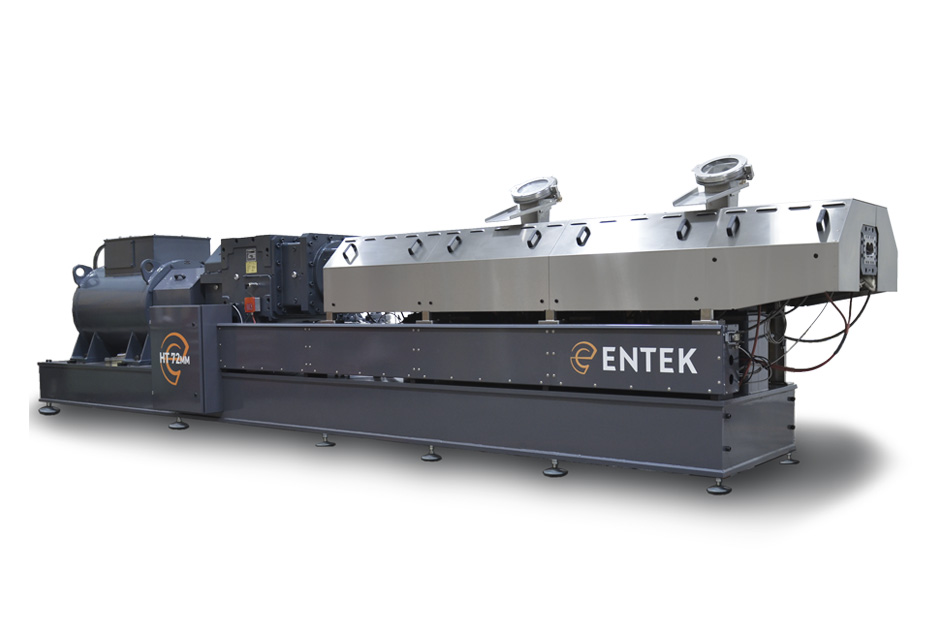

HT 72mm

Industry-leading free volume at 18 torque density

Specifications

Type Size (mm) Screw Diameter (mm) Do/Di Torque Density [Nm/cm3] Max Screw Speed (rpm) Max Motor Size (hp) Max Motor Size (kW)
HT 72 71.20 1.61 18.0 1,200 1200 895

Scroll the table to see all specs

QC3

This line of extruders was designed specifically for compounders who run small lots and have multiple changeovers each day. The QC3 Series includes our 27mm, 33mm and 43mm extruders.

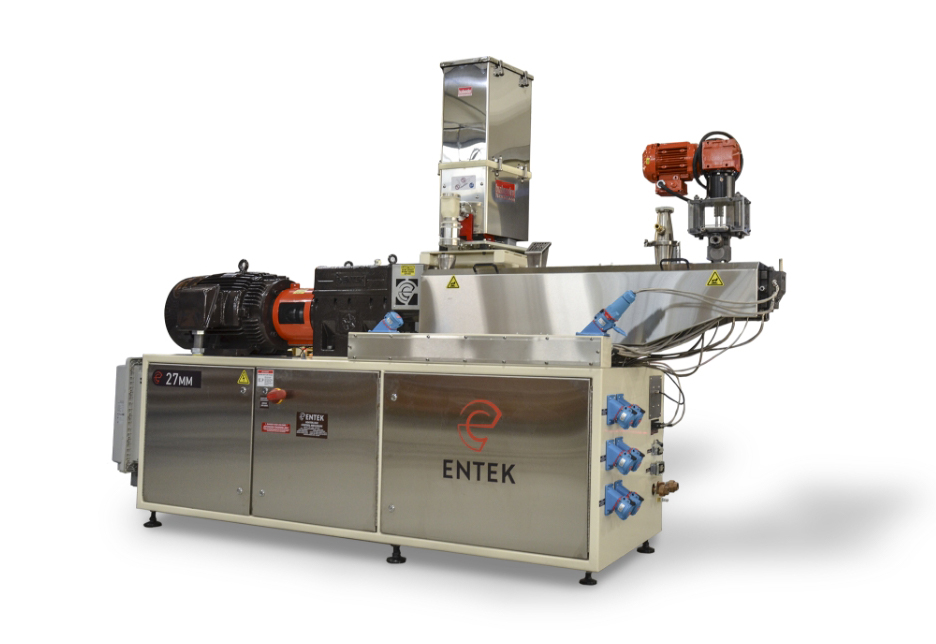

ENTEK Extruder Twin Screw 27mm

27mm

Ideal lab machine and high-value/low volume production machine.

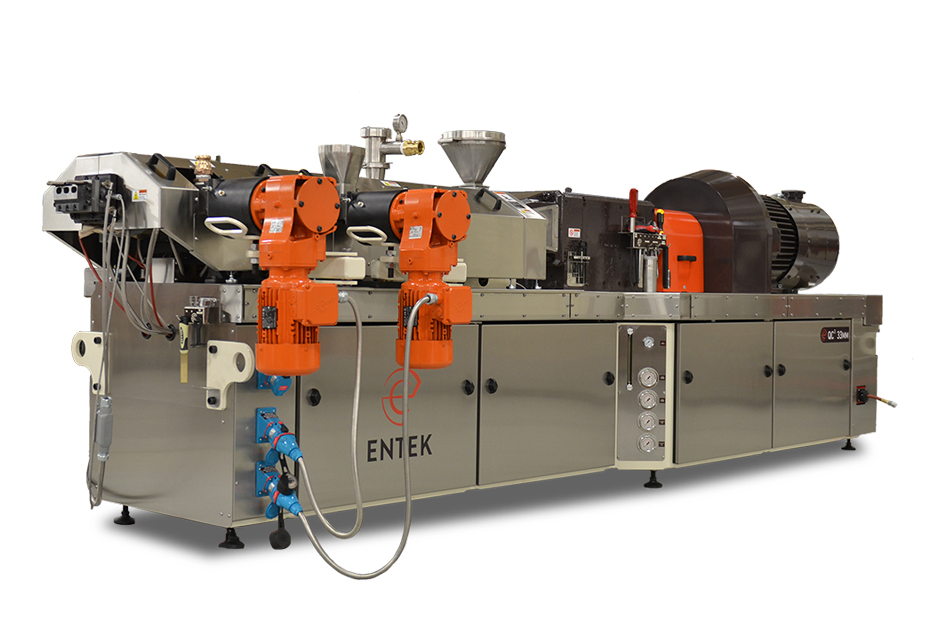

ENTEK - Twin Screw QC3 33MM

33mm

The QC3 extruder - Quick Change, Quick-Clean, Quality Control - ideal for some lab applications - as well as small to medium lots.

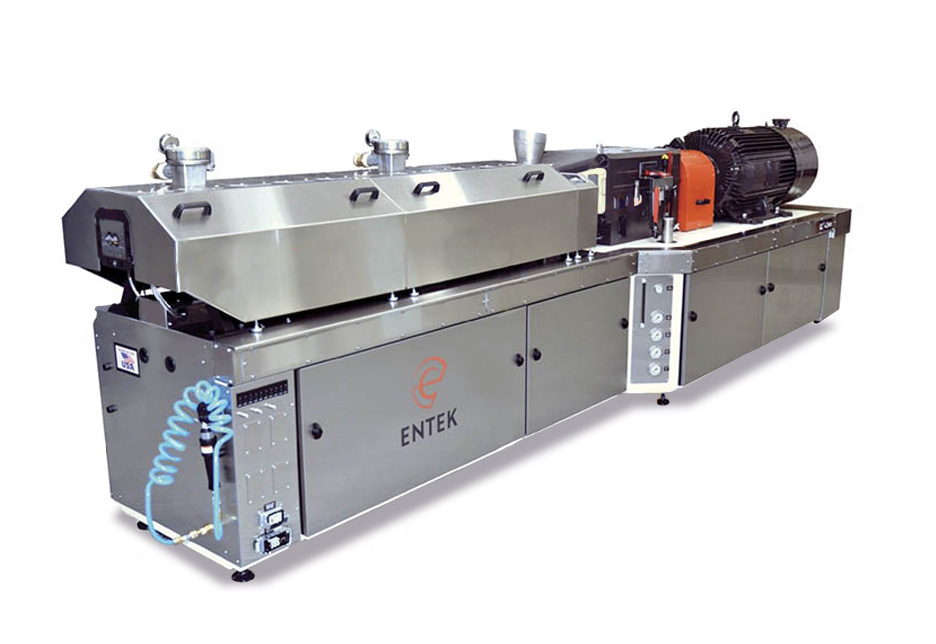

ENTEK Twin Screw - QC3 43MM

43mm

The QC³ extruder - Quick Change, Quick-Clean, Quality Control - for small to medium lot-size compounding.

Specifications

Type Size (mm) Screw Diameter (mm) Do/Di Torque Density [Nm/cm3] Max Screw Speed (rpm) Max Motor Size (hp) Max Motor Size (kW)
QC3 27 26.97 1.47 10.7 1,200 40 30
QC3 33 32.70 1.62 13.0 1,400 100 75
QC3 43 42.60 1.61 13.2 1,260 200 150

Scroll the table to see all specs

HR3

This series of extruders is used by manufacturers running larger lot sizes with few or no product changeovers. The HR3 Series includes our 53mm, 73mm, 103mm and 133mm extruders.

ENTEK Extruder Twin Screw 27mm

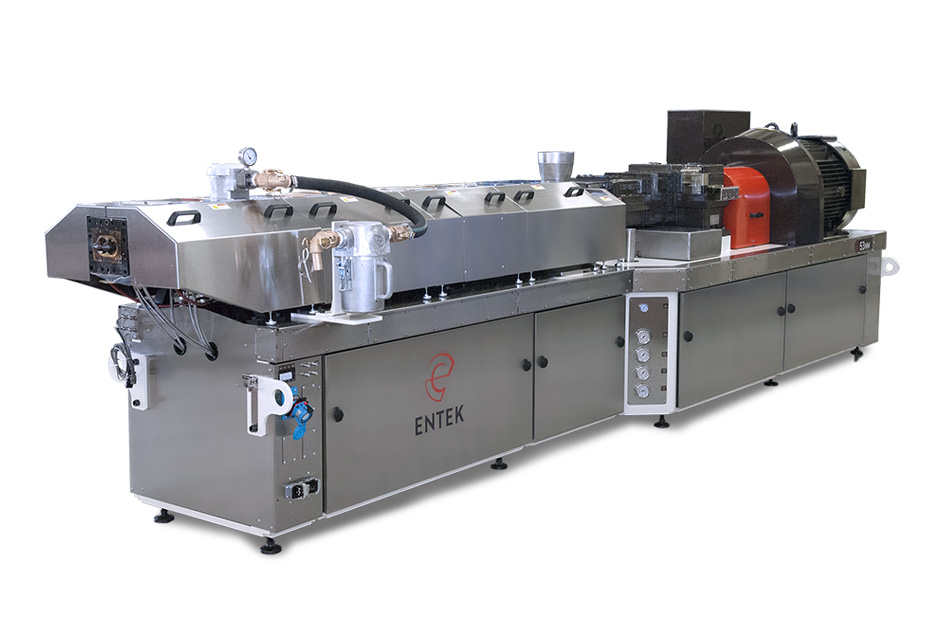

53mm

Medium lot-size custom compounding; 150 or 300 HP; 600 or 1200 RPM.

ENTEK Twin Screw - HR3 73MM

73mm

Large lot custom compounding; Up to 600 HP; 600 or 900 RPM.

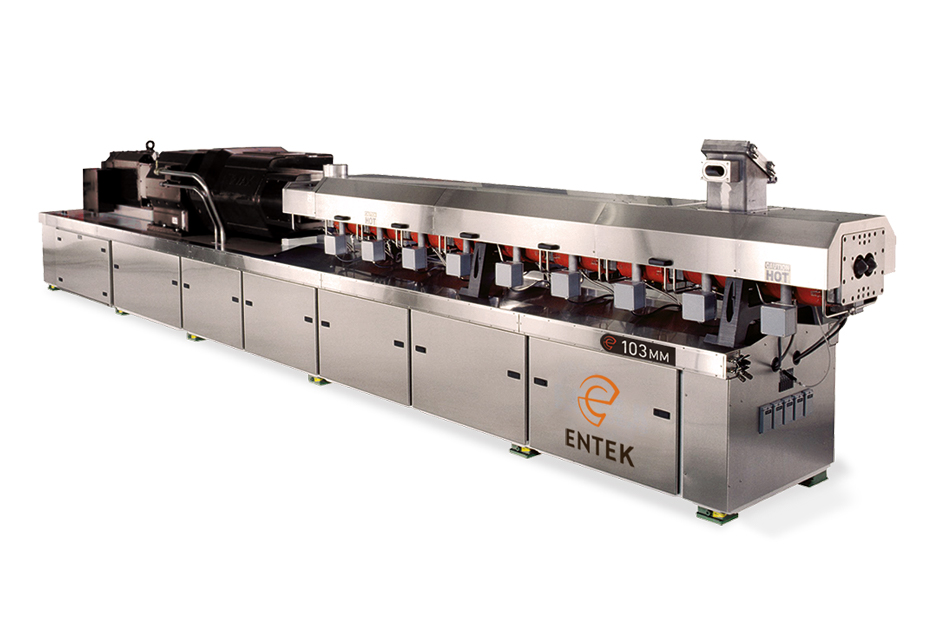

ENTEK Twin Screw - HR3 103MM

103mm

Masterbatch compounding; Up to 1400 HP; 300 or 600 RPM

ENTEK Twin Screw - HR3 103MM

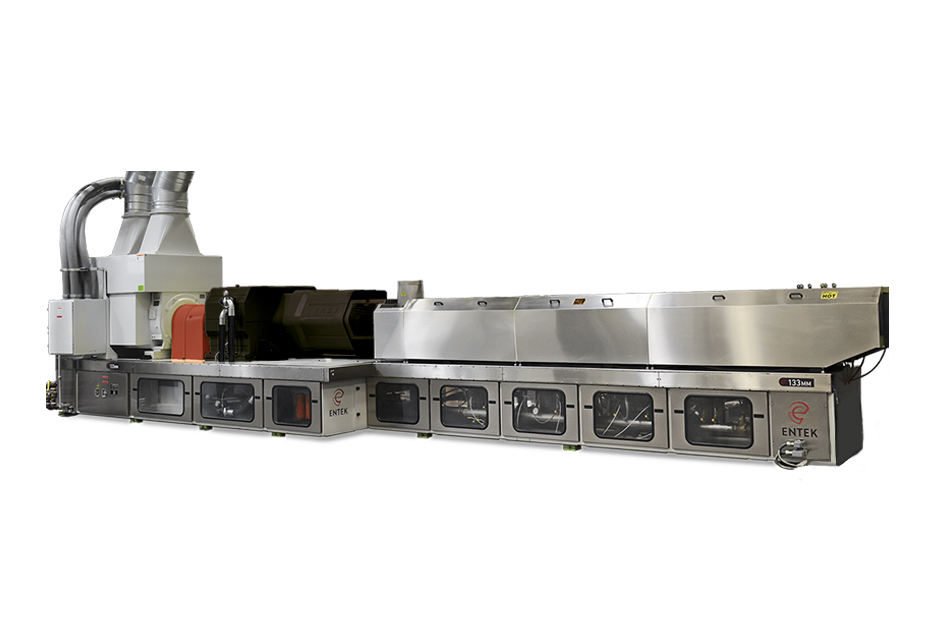

133mm

Masterbatch compounding; Up to 2500 HP; 300 or 600 RPM

Specifications

Type Size (mm) Screw Diameter (mm) Do/Di Torque Density [Nm/cm3] Max Screw Speed (rpm) Max Motor Size (hp) Max Motor Size (kW)
HR3 53 52.60 1.62 11.3 1,200 300 224
HR3 73 72.60 1.59 11.4 900 600 447
HR3 103 102.50 1.59 14.2 600 1,400 1,044
HR3 133 133.00 1.55 15.4 600 2,205 1,644

Scroll the table to see all specs
