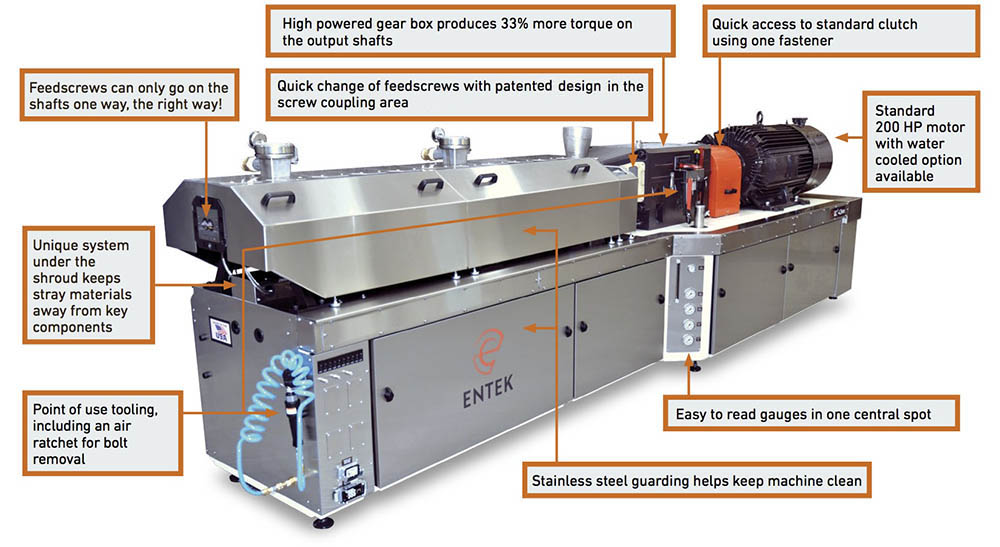

Screws
| Diameter | 43 mm |
|---|---|
| Rotation | Co-Rotating |
| Length | 40-52 L/D |
| Screw Center Distance (mm) | 35 |
| Screw Do/Di Ratio | 1.61 |
| Flight Depth (mm) | 8.0 |
| Free Area, 2-Flight (cm2) | 11.2 |
| Shafts | 36 Tooth Involute Spline |
Barrels
| Form | Square, Flanged |
|---|---|
| Length | 180 mm |
| Cooling | Internal Liquid Cooling |
| Open Barrel Heat Zone | 2.8 kW Bronze |
| Closed Barrel Heat Zone | 4.0 kW Bronze |
Drive Systems
| Std. Gearbox Ratios | 1.39 |
|---|---|
| Screw Speeds | 1260 rpm |
| Motor @ 1750 rpm | 200 hp |
| Motor Equivalent in kW | 149 kW |
| Voltage Options | 380 / 415 / 460 / 575 Volt |
| Standard Motor Controller | AC |
Standard Machine Configuration: 1 Feed Barrel, 8 Solid Barrels, 1 Vent Barrel, Gear Box Lube, Barrel Cooling Pump, 9 Bronze Cast Heater Zones
Controls
| Controller | Ethernet PLC with Color Computer Interface |
|---|---|
| Heat/Cool Zones | Up to 16 Standard (additional upon request) |
Size & Utilities
| Installed Cooling Capacity (gearbox and barrel) | 17 tons [60 kW] |
|---|---|
| Typical Cooling* | Estimated 5 tons [18 kW] |
| Est. Power @ 480V | Drive CB 300A (FLA:237), Extruder CB 150A (FLA:110) |
| Centerline Height | 1080 mm [42.5 in] |
| Length, 48D | 5150 mm [203 in] |
| Width | 1030 mm [40.5 in] |
| Height (top of motor) | 1430 mm [56 in] |
| Weight (approx.) | 4530 kg [10,000 lb] |
*To be calculated for your process during lab trial at ENTEK
**Standard Machine Configuration – 1 Feed Barrel, 8 Solid Barrels, 1 Vent Barrel, Gear Box Lube, Barrel Cooling Pump, 9 Bronze Cast Heater Zones
